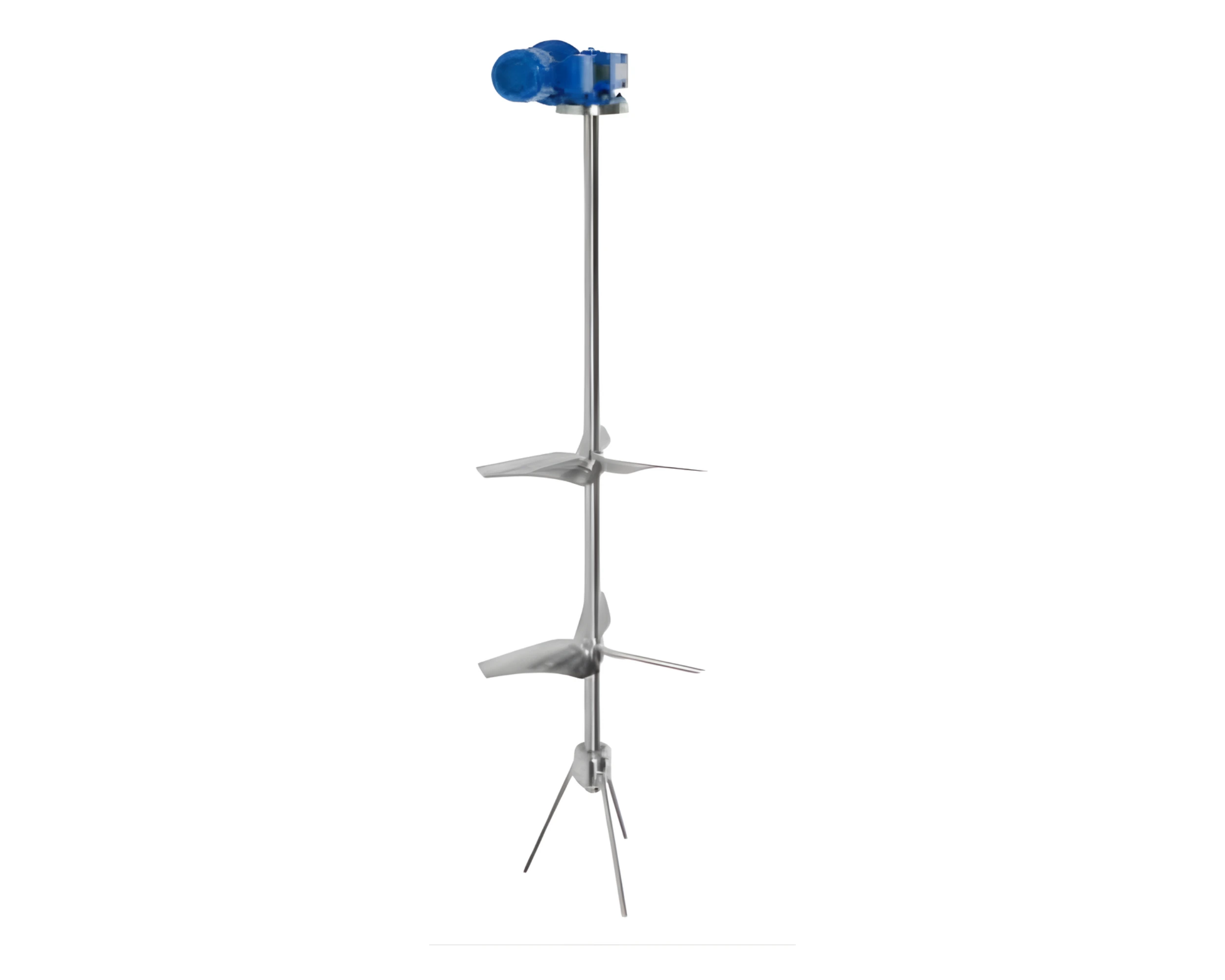

Top Mounted Agitator, type ALTB Alfa Laval

Technical Data

Motor

Motor size and speed are selected according to the required duty.
Standard: IEC motor, IP55 protection rating. Other motor types available upon request.
Standard finish: Painted RAL 5010.

Voltage and Frequency

Standard: 3 × 380–420V, 50Hz or 3 × 440–480V, 60Hz.
All motor voltage and frequency combinations are available.

Gear Unit

Various gear types available depending on configuration.
Standard: Filled with synthetic or mineral oil.
Optional: Food-grade certified oil.
Standard finish: Painted RAL 5010.

ATEX – Optional

The agitator can be supplied with ATEX certification for operation in potentially explosive atmospheres, including Declaration of Conformity in accordance with Directive 94/9/EC.

Ordering Information

To ensure correct sizing and configuration, the following information is required:

Tank geometry
Product characteristics
Agitator duty function

An enquiry form is available.

Physical Design

Materials

Metallic Product Contact Parts (Steel):

AISI 316L (standard)
AISI 304
AISI 904L
SAF 2205

Other materials available upon request.

Elastomer Seals (O-rings or Bellows):

EPDM
FPM/FEP (for stationary O-rings only)
FPM

Other materials available upon request.

Mechanical Seal Faces:

Carbon
Carbon (FDA compliant)
Silicon carbide

Wear Bushings (Bottom Steady Bearing):

PTFE (BS1P/BS1G)
PVDF (BS2P)

Optional Certificates:

Material certificate 3.1
FDA Declaration of Compliance in accordance with 21 CFR 177 for steel and elastomer parts in direct contact with the product

Dimensions:

Standard propeller diameter range: Ø125 mm to Ø1900 mm.
Specific dimensions of the drive unit and propeller depend on the selected configuration.

Category: Flow Equipment Tags: Agitator, Energy Saving, Homogen, Top Mounted

Description
Reviews (0)

Description

Kami menyediakan berbagai jenis produk agitator berkualitas tinggi yang dirancang untuk memenuhi kebutuhan proses pencampuran di industri makanan, minuman, dan farmasi. Salah satu produk unggulan kami adalah Alfa Laval Top mounted agitator Type ALTB

Application

Menjaga Media Tetap Homogen: Digunakan pada milk storage tanks, cream tanks, mixed product tanks, hingga UHT product storage tanks.
Pencampuran dan Pelarutan (Mixing and Solutions): Diterapkan pada proses pencampuran cairan seperti drinking yoghurt dan fruit mix tanks, flavoured milk mix tanks, serta syrup mix tanks.
Dispersi Padat (Solid Dispersion): Digunakan untuk mencampur bubuk dengan cairan, misalnya powder protein + oil mix tanks atau micro salt + milk product mix tanks.
Suspensi (Suspension): Cocok untuk cairan yang mengandung partikel, seperti juice tanks dan crystallising tanks.
Transmisi Panas (Heat Transmission): Diterapkan pada sirkulasi media di tangki dengan dimple jacket untuk proses pendinginan atau pemanasan.
Fermentasi Produk Susu (Dairy Fermentation – break coagula + mixing): Digunakan pada proses fermentasi susu seperti yoghurt tanks, cheese culture tanks, dan crème fraîche.

DESAIN STANDAR

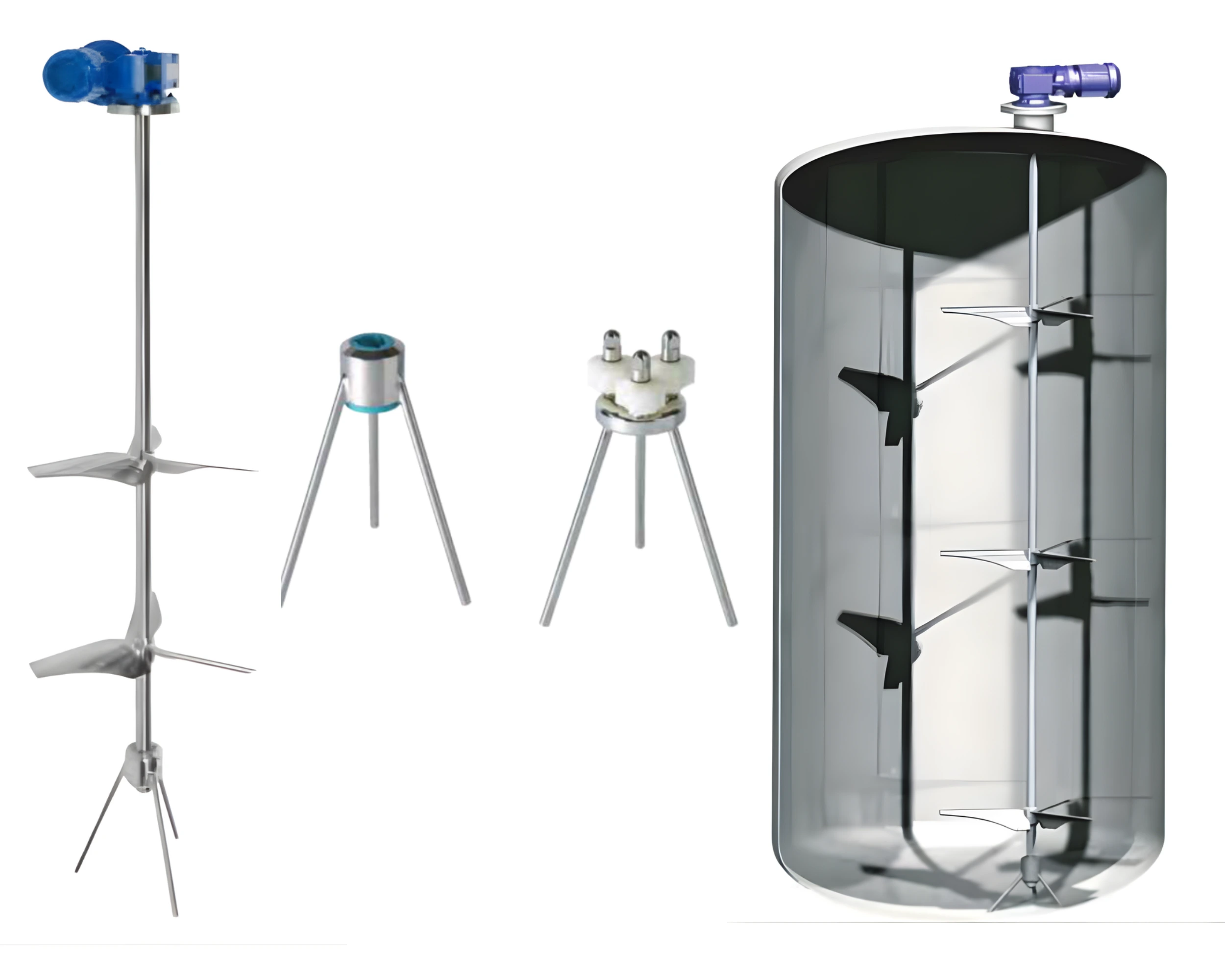

Rangkaian agitators propeller top-mounted Alfa Laval dengan bottom steady bearing dirancang untuk memenuhi hampir semua kebutuhan pelanggan.

Tipe ALTB

Dikenal dengan adanya penopang poros di dalam tangki, yang disebut bottom steady bearing.
Tipe ALTB standar umumnya lebih ekonomis dibanding agitator tanpa penopang poros internal.
Dengan konstruksi modular, agitator ini dapat disesuaikan untuk berbagai aplikasi di industri sanitari.
Konstruksi modular dirancang untuk memenuhi standar dan regulasi Eropa maupun Amerika, seperti EHEDG, USDA, FDA, 3A, dll.

Catatan: Alfa Laval juga menawarkan solusi agitators lainnya:

Tipe ALT: agitator top-mounted
Tipe ALS: agitator side-mounted
Tipe ALB: agitator bottom-mounted
