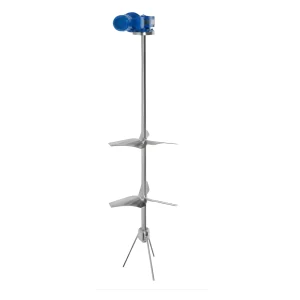

Top Mounted Agitator, type ALT Alfa Laval

Technical Data

Motor

Motor size and speed are selected according to the required duty.
Standard: IEC motor, IP55 protection; other types available upon request.
Standard finish: painted RAL 5010.

Voltage and Frequency

Standard: 3 × 380–420V, 50Hz or 3 × 440–480V, 60Hz.
All motor voltage and frequency combinations are available.

Gear

Various gear types available depending on configuration.
Standard: filled with synthetic or mineral oil; optional: certified food-grade oil.
Standard finish: painted RAL 5010.

ATEX – Optional

The agitator can be supplied with ATEX certification for use in potentially explosive environments, including a Declaration of Conformity in accordance with Directive 94/9/EC.

Ordering Information

To ensure proper sizing and configuration, the following information is required:

Tank geometry
Product characteristics
Agitator duty/function

An enquiry form is available.

Physical Data

Materials

Main Metal Components (Steel):

AISI 316L (standard)
AISI 304
AISI 904L
SAF 2205
Other materials available upon request

Seal Elastomers (O-ring or Bellows):

EPDM
FPM/FEP (for stationary O-ring only)
FPM
Other materials available upon request

Mechanical Seal:

Carbon
Carbon (FDA compliant)
Silicon carbide

Certificates – Optional

Material certificate 3.1
FDA Declaration of Compliance according to 21 CFR 177 for steel/elastomer parts in direct contact with the media

Dimensions

Standard propeller diameter range: Ø125 mm to Ø1900 mm
Specific dimensions of the drive unit and propeller depend on the selected configuration

Category: Flow Equipment Tags: Agitator, Dairy Fermentation, Energy Saving, Heat Transmission, Homogen, Mixing, Top Mounted

Description
Reviews (0)

Description

Kami menyediakan berbagai jenis produk agitators berkualitas tinggi yang dirancang untuk memenuhi kebutuhan proses pencampuran di industri makanan, minuman, dan farmasi. Salah satu produk unggulan kami adalah Alfa Laval Top Mounted Agitator Type ALT

Application

Menjaga Media Tetap Homogen:
Digunakan pada milk storage tanks, cream tanks, mixed product tanks, hingga UHT product storage tanks.
Pencampuran dan Pelarutan (Mixing and Solutions):
Diterapkan pada proses pencampuran cairan seperti drinking yoghurt dan fruit mix tanks, flavoured milk mix tanks, serta syrup mix tanks.
Dispersi Padat (Solid Dispersion):
Digunakan untuk mencampur bubuk dengan cairan, misalnya powder protein + oil mix tanks atau micro salt + milk product mix tanks.
Suspensi (Suspension):
Cocok untuk cairan yang mengandung partikel, seperti juice tanks dan crystallising tanks.
Transmisi Panas (Heat Transmission):
Diterapkan pada sirkulasi media di tangki dengan dimple jacket untuk proses pendinginan atau pemanasan.
Fermentasi Produk Susu (Dairy Fermentation – break coagula + mixing):
Digunakan pada proses fermentasi susu seperti yoghurt tanks, cheese culture tanks, dan crème fraîche.

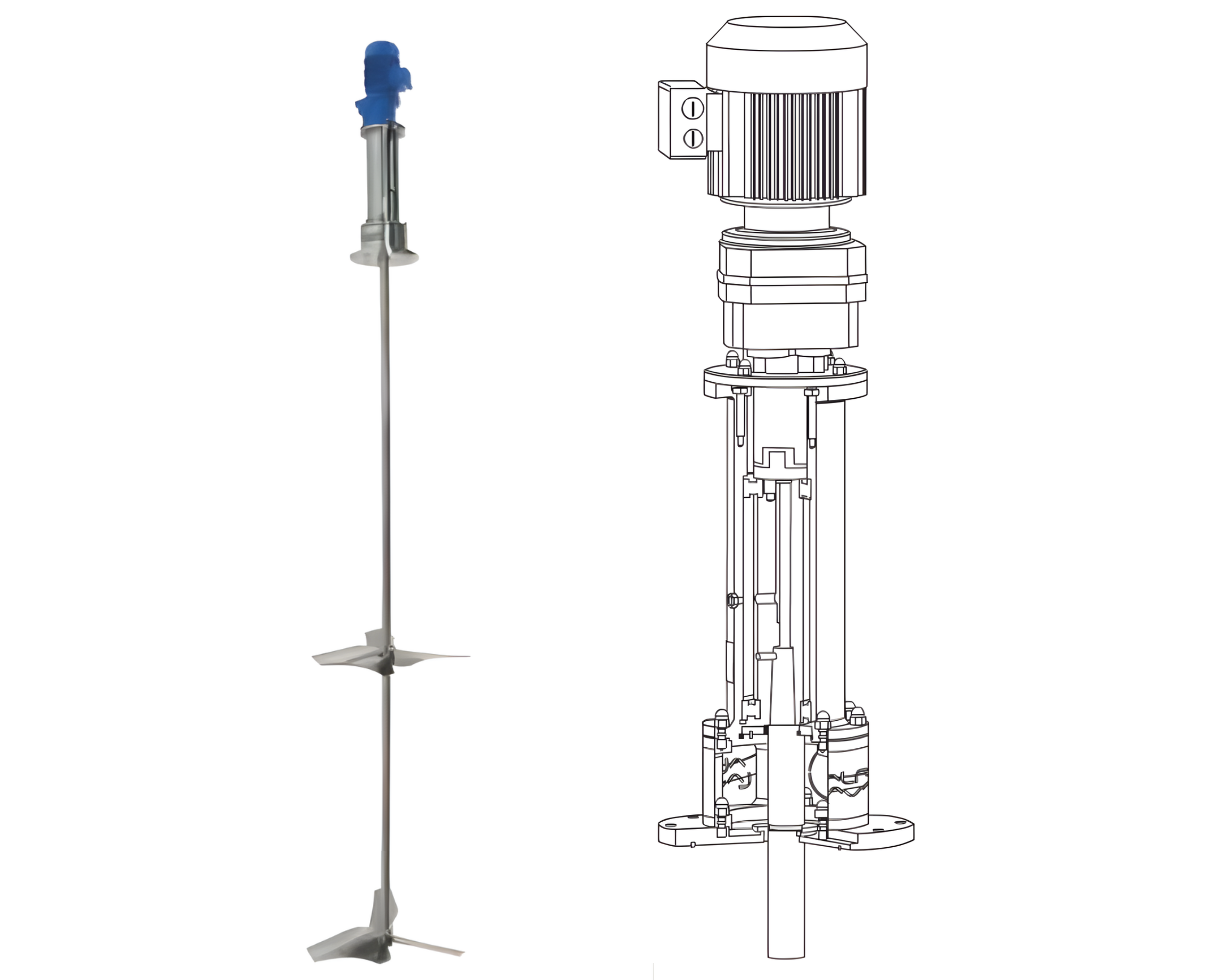

Standard Design

Rangkaian agitator propeller top-mounted Alfa Laval dirancang untuk memenuhi hampir semua kebutuhan pelanggan.

Tipe ALT

Dikenal dengan poros menggantung bebas (free-hanging) tanpa penopang bawah.
Dengan konstruksi modular, agitator ini dapat disesuaikan untuk berbagai aplikasi di industri sanitari.
Konstruksi modular ini dirancang agar memenuhi standar dan regulasi Eropa maupun Amerika, seperti EHEDG, USDA, FDA, 3A, dll.

Catatan: Alfa Laval juga menawarkan solusi agitator lainnya:

Tipe ALTB: agitator top-mounted dengan bearing bawah (bottom steady bearing)
Tipe ALS: agitator side-mounted
Tipe ALB: agitator bottom-mounted

Untuk informasi lebih lanjut, silakan lihat Product Data Sheets terpisah.
